3595-9E1 Compact Desktop Ethernet to SNET interface

€ - POA

Category:

Description

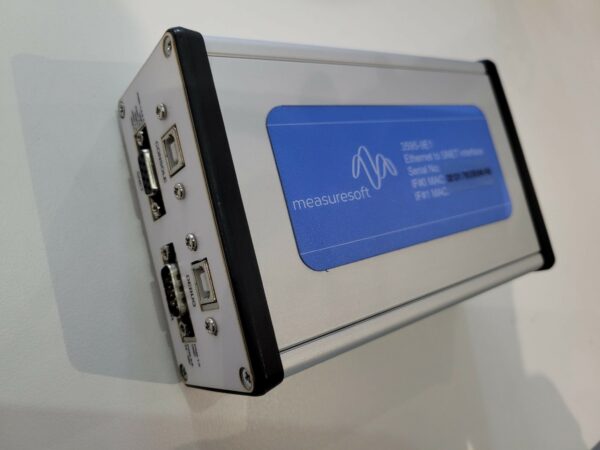

3595-9E1 Compact Desktop Ethernet to SNET interface

The 3595-9X Interface series replaces the 3595-9A, 3595-9B, 3595-9D series of interface units that were needed to allow an IMP SNET network to communicate with a host PC over Ethernet.

This means that IMPs can be interfaced with any type of computer irrespective of the operating system, opening up a wide range of additional applications.

The 3595-9X series eliminates the cost of replacing existing IMPs and S-Net networks when upgrading Pcs and software.

All communication and power connections are made via standard plugs and sockets on the panels of the unit.

Additional information

Format

3595-9D1 Wall Mount Interface, 3595-9E Compact Dekstop Interface, 3595-9A1 Rack Mount Interface

Specifications

External Connectors, Switches and Indicators

1xDC Micro USB connector
1xS-Net Female connector
1xS-Net Power Male Connector
1x100M RJ45 Ethernet Connector
1xUSB Wifi Port and Adaptor
1xUSB Serial Console Port
1xUSB Serial Debug Port
LED Indicators: 1x Red Host Power
1x Red Host Comms
1x Red SNet Comms
1x Red SNET Power

External Power Supply for 3595 9E1

Input Voltage: 100-240 VAC
Input Frequency: 50-60 Hz
Separate SNET power supply required

Operating Environment

Operating Temperature:0 – 50°C
Relative Humidity: (0 – 40°C) < 90%

SNET Cable

Screened single pair cable 100 OHM impedance.
Gauge depends on the external SNet power supply, see the installation guide.

Software

Protocol: TCP/IP compatible with original Solartron 3595-9X Series
TCP/IP Connection Port: 1234
Maximum Throughput: 850 results per second

Mechanical

Dimensions 100mmx160mmx55mm
Casing clear anodized aluminum
Weight 2kg

Downloads

IMPViewer Software: [Software]
